This two-storey residential house, with a total area of approximately 1500 sq. ft., offers spacious living across two levels. Designed for modern comfort and functionality, it’s ideal for families seeking room to grow. With ample living space, high-quality materials, and energy-efficient features, it provides a stylish and durable home. Quick to install and customizable to suit your needs, it’s the perfect solution for comfortable living.
PRICE $135.000 CAD
GALLERY
DETAILS
Two-storey residential house with a total area of approximately 1500 sq.ft
FLOOR AREA
- Total 1500 sq.ft
- First floor
- Living room 161 sq.ft
- Kitchen 56 sq.ft
- Dining room 116 sq.ft
- Washroom 57 sq.ft
- Hall 31 sq.ft
Second floor
- Bedroom 1 97 sq. ft
- Bedroom 2 151 sq.ft
- Bedroom 3 151 sq.ft
- Washroom 97 sq.ft
- Wardrobe 54 sq.ft
AVAILABLE OPTIONS
- Kitchen
- Washroom
- Interior renovation
- Landscaping and Hardscaping
FRAME
The frame of the residential module (external and internal walls, interfloor partitions) is made of CLT panels. The walls are wooden plate CLT 100 mm., sawn to size on CNC. The inner side is polished.
MATERIAL
Pine material Kiln-dried lamellas with a moisture content of 12-14.
Cross-section of CLT panels -100 mm, L= up to 7500 mm depending on the needs of the Buyer; The inner side is sanded, ready for finishing; antiseptic treatment of all structures.
FRAME FASTENING
Structural self-tapping screws for wood 8.0x180mm with a TORX 40 press washer (or equivalent).
WOOD ROOF TRUSS
A ready-made wooden roof truss on MZP is a ready-made element of the roof truss structure assembled in factory conditions on MZP (metal toothed plates) from a board (Material: Pine, Spruce) The presence of rot, blue, wormholes, through cracks, bark, bark remnants and falling knots, wood defects is not allowed. The section of the board and the spacing of the trusses are calculated based on the required load for the region.
WALLS
TechnoNICOL parainsulation or (equivalent). Roof covering – Clickfold Grand Line 0.45 Drap ST with film on locks (or equivalent) RAL 7024 (wet asphalt) or analogue.
FACADE
Front facade (part), Rear facade Planken (pine or spruce).
ROOF
TechnoNICOL parainsulation (or equivalent). Roof covering – Clickfold Grand Line 0.45 Drap ST with RAL 7024 lock film (wet asphalt) or equivalent.
GLAZING
Windows, door: Melke Evolution 70 Anthracite, Titan AF fittings, External color: Anthracite-grey , Inner colour: Anthracite-grey or analogue Filling: 4MF, Glazing bead:
Black Glazing bead groove plug black frame. Entrance door Melke Evolution 70 Anthracite Door fittings External color: Anthracite-grey (inside) Inner colour: Anthracite-grey (outside) Fillings: 4MF or equivalent.
Lumber and fasteners included.
Assembly instructions.

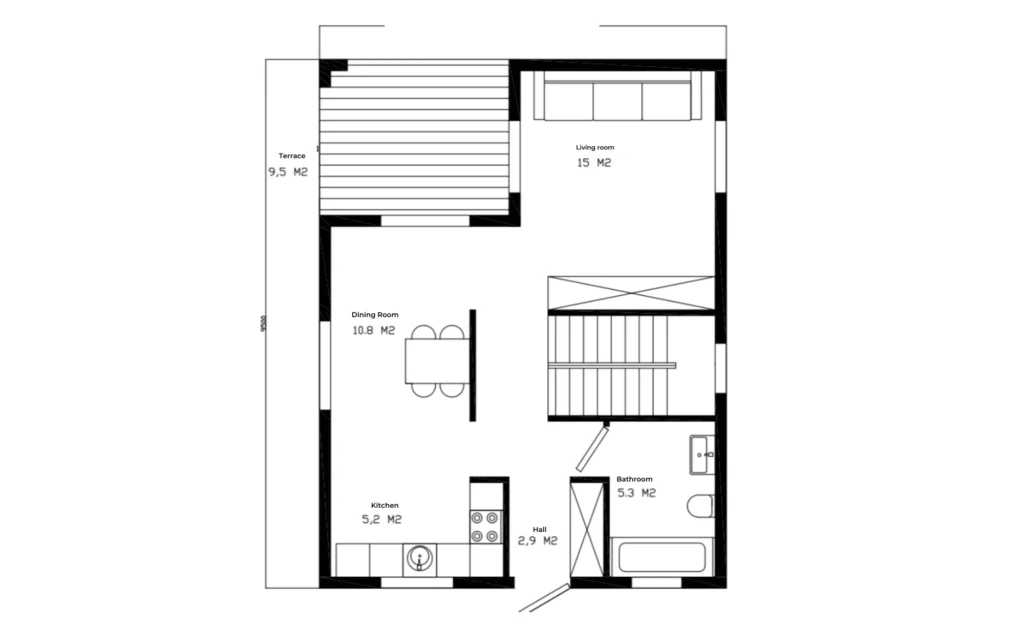

FLOOR PLAN
