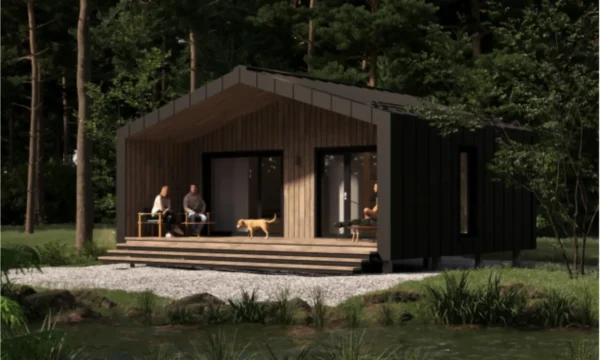

Our 450 sq. ft. one-storey residential modular home is designed for modern and efficient living. Perfect for singles, couples, or as a guest house, this thoughtfully designed space features an open-concept layout that maximizes functionality. Built with high-quality materials and energy-efficient design, this modular home is both stylish and cost-effective. With quick installation and customizable options, it’s a hassle-free solution for comfortable living.
PRICE $41.000 CAD
GALLERY
DETAILS
One-storey residential module with a total area of 450 sq.ft (including terrace 170sq.ft)
- FLOOR AREA
- Total 450 sq.ft.
- Terrace 161 sq.ft
- Hall 30 sq.ft
- Kitchen and living room 89 sq.ft
- Bedroom 85 sq.ft
- Washroom 35 sq.ft
AVAILABLE OPTIONS
- Kitchen
- Washroom
- Interior renovation
- Landscaping and Hardscaping
FRAME
Frame of the living module: made of CLT panels. Exterior and interior walls are 100 mm CLT wooden board, sawn to size on CNC.Material: Pine; Kiln-dried lamellas with a moisture content of 12-14. Cross- section of CLT panels -100 mm, L= up to 7500 mm depending on the needs of the Buyer; The inner side is sanded, ready for finishing; antiseptic treatment of all structures.
Wood defects: roughness: the depth of unevenness is no more than 1 mm; mechanical damage: depth not more than 1 mm.
FRAME FASTENING
Frame fastening: Structural self-tapping screws for wood 8.0x180mm with a TORX 40 press washer (or equivalent).
WALLS
TechnoNICOL parainsulation (or equivalent). Roof covering – Clickfold Grand Line 0.45 Drap ST with film on locks (or equivalent) RAL 7024 (wet asphalt) or analogue.
FACADE
Front facade (part), Rear facade Planken (pine or spruce).
ROOF
TechnoNICOL parainsulation (or equivalent). Roof covering – Clickfold Grand Line 0.45 Drap ST with RAL 7024 lock film (wet asphalt) or equivalent.
GLAZING
Windows, door: Melke Evolution 70 Anthracite, Titan AF fittings, External color: Anthracite-grey , Inner colour: Anthracite-grey or analogue Filling: 4MF, Glazing bead: Black,Glazing bead groove plug black frame Entrance door Melke Evolution 70 Anthracite Door fittings External color: Anthracite-grey (inside) Inner colour: Anthracite-grey (outside) Fillings: 4MF
or equivalent.
TERRACE
Terrace board (pine, spruce);
Lumber and fasteners included.
Assembly instructions.
FLOOR PLAN
